ASTM TP430 Stainless Steel Seamless Pipe SS Round Tube 2" Sch10
430 stainless steel is a universal steel with good corrosion
resistance, better thermal conductivity than austenite, smaller
thermal expansion coefficient than austenite, heat resistance
fatigue, adding stabilized element titanium, good mechanical
properties at the weld. 430 stainless steel used for building
decoration, fuel burner parts, household appliances, home appliance
parts.
Product introduction:
| Commodity | 430 Stainless Steel Welded Pipe SS Tube |
| Grade | 430 |
| Brand | No brand |
| Certification | SGS,BV,IQI,TUV,ISO,etc |
| Wall Thickness | 1.5-30mm |
| Outside diameter | 6-630mm |
| Length | 1000-6000mm |
| Surface | annealed and pickled |
| Technique | welded |
| Standard | ASTM,AISI,SUS,JIS,EN,DIN,GB, ASME,etc |
| Delivery time | About 15 -30 days or based on the sales contract |
| MOQ | 1 Ton |
| Advantages | 1)High strength; 2) Excellent machinability 3) hardening occurs after heat treatment; 4) magnetic; 5) Not suitable for harsh corrosive environment. |

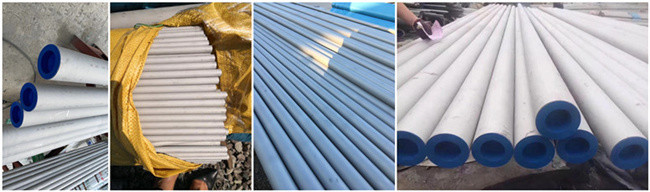

Product Display :
Advantage of 430 :
1) Excellent deep drawing performance;
2) 430 has strong corrosion resistance to oxidizing acid, alkali
liquor and most organic and inorganic acids;
3) Lower coefficient of thermal expansion than 304 steel, high
oxidation resistance, suitable for heat resistant equipment;
4) Cold rolled product appearance brightness is good, beautiful;
5) Compared with 304, the price is cheaper, can be the replacement
of 304
Chemical Composition:
| Grade | Chemical Composition (WT %) |
|
| Carbon | Manganese | Phosphorus | Sulfur | Silicon | Chromium | Nickel |
| 430 | ≤ 0.12 | ≤ 1.00 | ≤ 0.040 | ≤ 0.030 | ≤ 1.00 | 16.0 to 18.0 | ≤ 0.60 |
Physical Property:
| Physical Property |
| Tensile Strength(Mpa) | Yield Strength(Mpa) | Elongation % | Elastic Modulus | Hardness (HV) | Density |
≥450
|
≥205
|
≥22%
| | ≤ 200 | 7.75g/cm3 |
³
The following table is the size of the stainless steel seamless
tube. For any other detail information, please feel free to contact
us.
Typicall material :
| Seamless and redrawn | | |
| ASTM Grade | UNS no. | Condition | Specifications |
| 304 | S30400 | Hard | AMS 5566/5564 |
| 304 | S30400 | Hard | MILT 5695 |
| 304 | S30400 | Hard | LN 9396 |
| 304 | S30400 | Hard | LN 9398 |
| 304 | S30400 | Annealed | MILT 8504 |
| 304L | S30403 | Hard | AMS 5569 |
| 304L | S30403 | Hard or annealed | AIR 9164 |
| 304L | S30403 | Hard or annealed | AIR 9160 |
| 304L | S30403 | Annealed | AIR 9423 |
| 304L | S30403 | Annealed | AIR 9424 |
| 321 | S32100 | Annealed | AMS 5645, AMS 5557/5570 |
| 321 | S32100 | Hard or annealed | AIR 9164 |
| 321 | S32100 | Hard or annealed | AIR 9160 |
| 321 | S32100 | Annealed | AIR 9423 |
| 321 | S32100 | Annealed | AIR 9424 |
| 321 | S32100 | Annealed | BSI T67 |
| 321 | S32100 | Annealed | LN 9396 |
| 321 | S32100 | Annealed | MILT 8808 |
| 321/347 | S34700 | Annealed | LN 9398 |
| 347 | S34700 | Annealed | AMS 5571/5556 |
| 347 | S34700 | Hard | BSI T68 |
SCH Table :
Surface Finish:
Packaging:
ASTM TP430 Stainless Steel Seamless Pipe SS Round Tube 2" Sch10 Packaging Details:
1: Pipes be covered with waterproof protective packing materials;
2: Then be bundled with strips together;
3: Well loaded and be transported to the loading port.
The inner size container as below:
1:20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high) about 24-26CBM
;
2:40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM ;
3:40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBM.
