Pipe Electric Resistance Welding 347 ERW Stainless Steel Tube 321
316
Electric Resistance Welded (ERW) pipe is manufactured by cold
forming a flat steel strip into a rounded tube and passing it
through a series of forming rollers to obtain a longitudinal seam.
The two edges are then simultaneously heated with a high frequency
current and squeezed together to form a bond.
Product introduction:
| Commodity | Pipe Electric Resistance Welding 347 ERW Stainless Steel Tube 321
316 |
| Grade | 347 316 321 |
| Brand | No brand |
| Certification | SGS,BV,IQI,TUV,ISO,etc |
| Wall Thickness | 2.5 mm |
| Outside diameter | 120 mm |
| Length | 1000-6000mm |
| Surface | annealed and pickled |
| Technique | welded |
| Standard | ASTM,AISI,SUS,JIS,EN,DIN,GB, ASME,etc |
| Delivery time | About 15 -30 days or based on the sales contract |
| MOQ | 1 Ton |
| Advantages | 1) High strength; 2) Excellent machinability 3) hardening occurs after heat treatment; 4) magnetic; 5) Not suitable for harsh corrosive environment. |
Type 347 is designed to have properties similar to type 304
stainless steel, which is the most common grade of austenitic
stainless steel. The most notable difference is its ability to
resist intergranular corrosion.
Chemical Composition:
| Grade | C | Si | Mn | P | S | Ni | Cr | Mo | N |
| 347 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.03 | 9.00～13.00 | 17.00～19.00 | - | |
Physical Property:
| Grade | Tensile Strength(Mpa) | Yield Strength(Mpa) | Elongation(%) | HBW | HRB | HV |
| 347 | ≥520 | ≥205 | ≥35 | ≤187 | ≤90 | ≤200 |
The following table is the size of the stainless steel seamless
tube. For any other detail information, please feel free to contact
us.
Typicall material :
| Seamless and redrawn | | |
| ASTM Grade | UNS no. | Condition | Specifications |
| 304 | S30400 | Hard | AMS 5566/5564 |
| 304 | S30400 | Hard | MILT 5695 |
| 304 | S30400 | Hard | LN 9396 |
| 304 | S30400 | Hard | LN 9398 |
| 304 | S30400 | Annealed | MILT 8504 |
| 304L | S30403 | Hard | AMS 5569 |
| 304L | S30403 | Hard or annealed | AIR 9164 |
| 304L | S30403 | Hard or annealed | AIR 9160 |
| 304L | S30403 | Annealed | AIR 9423 |
| 304L | S30403 | Annealed | AIR 9424 |
| 321 | S32100 | Annealed | AMS 5645, AMS 5557/5570 |
| 321 | S32100 | Hard or annealed | AIR 9164 |
| 321 | S32100 | Hard or annealed | AIR 9160 |
| 321 | S32100 | Annealed | AIR 9423 |
| 321 | S32100 | Annealed | AIR 9424 |
| 321 | S32100 | Annealed | BSI T67 |
| 321 | S32100 | Annealed | LN 9396 |
| 321 | S32100 | Annealed | MILT 8808 |
| 321/347 | S34700 | Annealed | LN 9398 |
| 347 | S34700 | Annealed | AMS 5571/5556 |
| 347 | S34700 | Hard | BSI T68 |
SCH Table :
Surface Finish:
Packaging:
Pipe Electric Resistance Welding 347 ERW Stainless Steel Tube 321
316 packaging details:
1: Pipes be covered with waterproof protective packing materials;
2: Then be bundled with strips together;
3: Well loaded and be transported to the loading port.
The inner size container as below:
1:20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high) about 24-26CBM
;
2:40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM ;
3:40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBM.

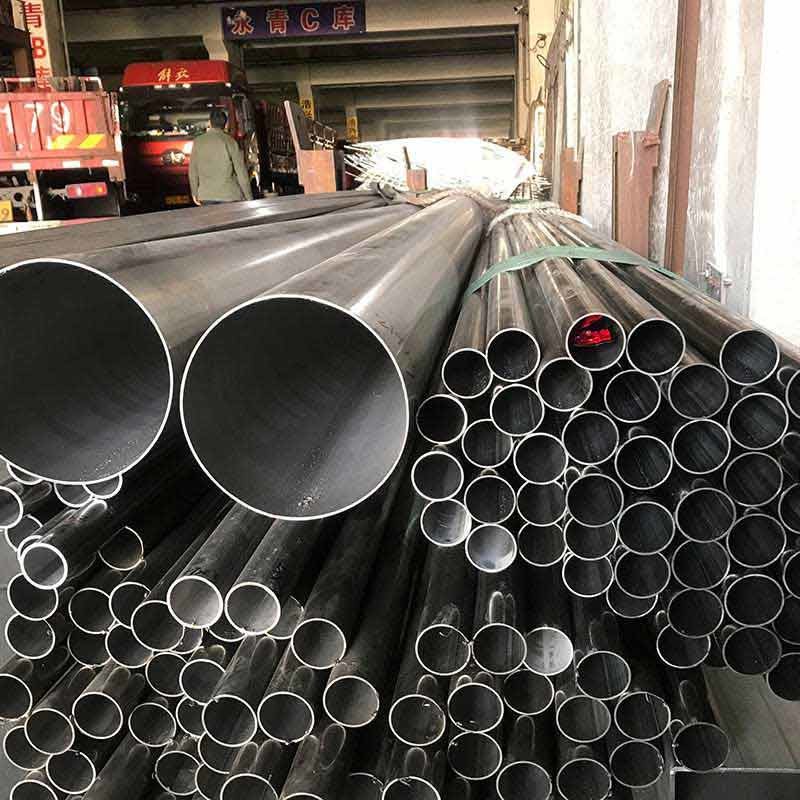

Product Show:
WHY CHOOSE US:
Q1: What is your terms of payment?
A: 30% T/T in advance, the balance 70% before delivery. We will
show you the photos of products and package before you pay the
balance.
Q2: what is the terms of delivery?
A: FOB, CIF, CFR,
Q3: What is the terms of packing?
A: generally, we pack our goods in bundles or coils with rods or
belts, we could also pack the goods as the customers' requirement.
Q4: What is your delivery time?
A: For stocks, we could transport the goods to loading port within
7 days after we received your deposit.
For production period, it usually takes about 15 days-30 days after
receiving the deposit.
Q5: Could you produce according to the samples?
A : Yes, we could customer-made by your samples or technique
drawings, we could build the mold and fixtures.
Q6: Could you provide the samples?
A: yes, we could provide the free samples on conditons it is
available in stocks, however, the the transportation fee is borne
by buyer.
