304/304L 316/316L 321 904L Seamless Stainless Steel Tube with ISO
TUV PED SGS
ChuangEN Metal has been dedicated to producing seamless stainless
steel pipe since 2003, owning complete producing technology and
abundant managing experience. Our raw material such as mother tube,
round bar we use is from the Chinese biggest and well-known steel
mill: Walsin, Yongxing, etc. And We have advanced NDT equipments
for the tests such as Eddy Current test, Ultrasonic test, Hydraulic
test, and so on. We have ISO 9001 and PED certificates, and the
Third Party Inspection Certificates such as TUV, BV, Lloyd's, SGS,
etc, also can be provided according to customers' requirements.
Product introduction:
| Commodity | 304/304L 316/316L 321 904L Seamless Stainless Steel Tube with ISO
TUV PED SGS |
| Grade | 300 Series, 301L, S30815, 301, 304N, 310S, S32305, 410, 316Ti,
316L, 316, 420J1, 321, 410S, 410L, 436L, L1, S32304, 347, 430,
309S, 304, 420J2, 304L, 370, S32101, 904L, 301LN, 304J1, 317L |
| Brand | TISCO ,BAOSTEEL,POSCO,JISCO,LISCO |
| Certification | SGS,BV,IQI,TUV,ISO,etc |
| Wall Thickness | 1.5-30mm |
| Outside diameter | 6-630mm |
| Length | 1000-6000mm |
| Surface | pickled |
| Technique | seamless |
| Standard | ASTM,AISI,SUS,JIS,EN,DIN,GB, ASME,etc |
| Delivery time | About 15 -30 days or based on the sales contract |
| MOQ | 1 Ton |
| Advantages |
Stainless steel pipe applies to petroleum, chemical industry,
electric power, boiler ,high temperature resistant low temperature
resistant ,corrosion resistant seamless steel pipe used. Stainless
steel pipe and other material can be made according to the
customers’ requirements.
|

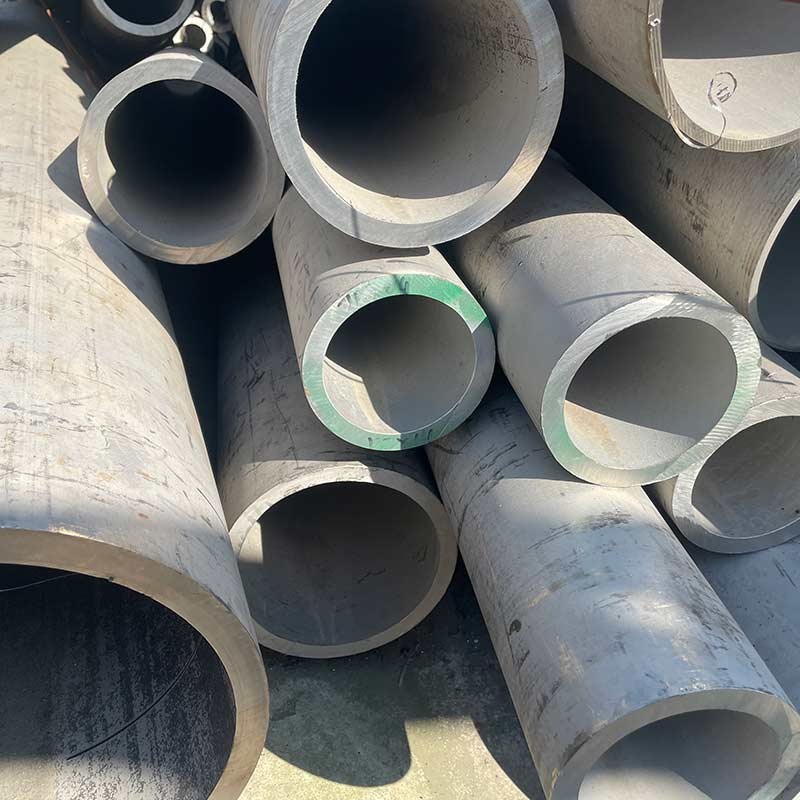

Product Display :
with seamless steel pipe. For pressure and temperature
requirements, there are seam steel pipes, such as domestic water
pipes and gas pipes. The easiest way to identify the two is to look
at the look. There are seam steel pipes, there will be a welded
straight line, or the surface is polished
The following table is the size of the stainless steel seamless
tube. For any other detail information, please feel free to contact
us.
Typicall material :
| Seamless and redrawn | | |
| ASTM Grade | UNS no. | Condition | Specifications |
| 304 | S30400 | Hard | AMS 5566/5564 |
| 304 | S30400 | Hard | MILT 5695 |
| 304 | S30400 | Hard | LN 9396 |
| 304 | S30400 | Hard | LN 9398 |
| 304 | S30400 | Annealed | MILT 8504 |
| 304L | S30403 | Hard | AMS 5569 |
| 304L | S30403 | Hard or annealed | AIR 9164 |
| 304L | S30403 | Hard or annealed | AIR 9160 |
| 304L | S30403 | Annealed | AIR 9423 |
| 304L | S30403 | Annealed | AIR 9424 |
| 321 | S32100 | Annealed | AMS 5645, AMS 5557/5570 |
| 321 | S32100 | Hard or annealed | AIR 9164 |
| 321 | S32100 | Hard or annealed | AIR 9160 |
| 321 | S32100 | Annealed | AIR 9423 |
| 321 | S32100 | Annealed | AIR 9424 |
| 321 | S32100 | Annealed | BSI T67 |
| 321 | S32100 | Annealed | LN 9396 |
| 321 | S32100 | Annealed | MILT 8808 |
| 321/347 | S34700 | Annealed | LN 9398 |
| 347 | S34700 | Annealed | AMS 5571/5556 |
| 347 | S34700 | Hard | BSI T68 |
| 347 | S34700 | Annealed | BSI T66 |
| 347 | S34700 | Annealed | BSI T72 |
| 347 | S34700 | Annealed | MILT 8808 |
| 304/304L | S30400/S30403 | Hard | MILT 6845 |
| 304L/321/347 | S30403/S32100/S34700 | Annealed | MILT 8606 |
| 304L/316L/321/347 | S30403/S32100/S34700 | Hard | MILT 8973 |
| Alloy 625 | N06625 | Annealed | AMS 5581 |
| Alloy 718 | N07718 | Annealed | AMS 5590 |
| Nickel 200 | N02200 | Annealed |
|
Chemical Composition :
| Material | ASTM A269 Chemical Composition % Max |
| C | Mn | P | S | Si | Cr | Ni | Mo | N B | Nb | Ti |
| TP304 | 0.08 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-11.0 | ^ | ^ | ^. | ^ |
| TP304L | 0.035 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-12.0 | ^ | ^ | ^ | ^ |
| TP316 | 0.08 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 10.0-14.0 | 2.00-3.00 | ^ | ^ | ^ |
| TP316L | 0.035 D | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 10.0-15.0 | 2.00-3.00 | ^ | ^ | ^ |
| TP321 | 0.08 | 2 | 0.045 | 0.03 | 1 | 17.0-19.0 | 9.0-12.0 | ^ | ^ | ^ | 5C -0.70 |
| TP347 | 0.08 | 2 | 0.045 | 0.03 | 1 | 17.0-19.0 | 9.0-12.0 | | | 10C -1.10 | ^ |
Surface Finish:
Packaging:
Cold Drawn Stainless Steel Tube, Seamless and Weld Tube (201, 304,
316L, 321, 310S, 2205) Packing Details
1: Pipes be covered with waterproof protective packing materials;
2: Then be bundled with strips together;
3: Well loaded and be transported to the loading port.
The inner size container as below:
1:20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high) about 24-26CBM
;
2:40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM ;
3:40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBM.
Application
a) For fluid & gas transport
b) Structure & machining
c) Petrochemical
d) Environmental protection
e) Electricity
f) Instrument industry etc
Advantages
a) Superior surface finish
b) Better mechanical property
c) More precise dimension
d) Perfect inspection method and inspection equipment
