AISI 201 202 Hot Rolling Straightening Steel Sheet ASTM Standard
A480
The main difference between austenitic and ferritic stainless steel
is that the former features a crystalline structure, whereas the
latter contains a higher concentration of chromium. Austenitic
stainless steel is also better protected against corrosion than
ferritic stainless steel.
Product introduction:
| Commodity | AISI 201 202 Hot Rolling Straightening Steel Sheet ASTM Standard
A480 |
| Grade | 201 202 |
| Brand | TISCO ,BAOSTEEL,POSCO,JISCO,LISCO |
| Certification | SGS,BV,IQI,TUV,ISO,etc |
| Thickness | 3-100 mm |
| Width | 1219 mm |
| Length | 2438mm |
| Surface | NO.1 2D NO.3 |
| Standard | JIS,AISI,ASTM,GB,DIN |
| Delivery time | About 15 -30 days or based on the sales contract |
| MOQ | 1 Ton |
| Advantages | Hot rolling can greatly reduce energy consumption and costs. The
metal plastic deformation is high during hot rolling, and the
deformation resistance is low, which reduces the energy consumption
of metal deformation. Hot rolling can improve the processing
performance of metals and alloys. |
Brand Cross Reference Table:
| GB NEW BRAND | JIS | ASTM | UNS | KS | BS EN | AS |
| 12Cr17Mn6Ni5N | SUS201 | 201 | S20100 | STS201 | 1.4372 | 201-2 |
| 12Cr18Mn9Ni5N | SUS202 | 202 | S20200 | STS202 | 1.4373 | - |
Gauge and Inch:
| Gauge | SS inch | SS mm | Mild Steel | Galvanized Steel |
| | | | |
| 3 | 0.25 | 6.35 | 0.2391 | |
| 4 | 0.2344 | 5.95376 | 0.2242 | |
| 5 | 0.2187 | 5.55498 | 0.2092 | |
| 6 | 0.2031 | 5.15874 | 0.1943 | |
| 7 | 0.1875 | 4.7625 | 0.1793 | |
| 8 | 0.165 | 4.191 | 0.1644 | 0.168 |
| 9 | 0.1562 | 3.96748 | 0.1495 | 0.1532 |
| 10 | 0.1406 | 3.57124 | 0.1345 | 0.1382 |
| 11 | 0.125 | 3.175 | 0.1196 | 0.1233 |
| 12 | 0.1094 | 2.77876 | 0.1046 | 0.1084 |
| 13 | 0.0937 | 2.37998 | 0.0897 | 0.0934 |
| 14 | 0.0781 | 1.98374 | 0.0747 | 0.0785 |
| 15 | 0.0703 | 1.78562 | 0.0673 | 0.071 |
| 16 | 0.0625 | 1.5875 | 0.0598 | 0.0635 |
| 17 | 0.0562 | 1.42748 | 0.0538 | 0.0575 |
| 18 | 0.05 | 1.27 | 0.0478 | 0.0516 |
| 19 | 0.0437 | 1.10998 | 0.0418 | 0.0456 |
| 20 | 0.0375 | 0.9525 | 0.0359 | 0.0396 |
| 21 | 0.0344 | 0.87376 | 0.0329 | 0.0366 |
| 22 | 0.0312 | 0.79248 | 0.0299 | 0.0336 |
| 23 | 0.0281 | 0.71374 | 0.0269 | 0.0306 |
| 24 | 0.025 | 0.635 | 0.0239 | 0.0276 |
| 25 | 0.0219 | 0.55626 | 0.0209 | 0.0247 |
Chemical Composition:
| Grade | C | Si | Mn | P | S | Ni | Cr | Mo |
| 201 | ≤0.15 | ≤1.00 | 5.5～7.5 | ≤0.060 | ≤0.03 | 3.5～5.5 | 16.00～18.00 | - |
| 202 | ≤0.15 | ≤1.00 | 7.5～10.0 | ≤0.060 | ≤0.03 | 4.0～6.0 | 17.00～19.00 | - |
Physical Property:
| Grade | Tensile Strength(Mpa) | Yield Strength(Mpa) | Elongation(%) | HBW | HRB | HV |
| 201 | ≥520 | ≥275 | ≥55 | ≤241 | ≤100 | ≤253 |
| 202 | ≥520 | ≥275 | ≥55 | ≤207 | ≤95 | ≤218 |
Feature:
Type 201 can be used in many applications because of its wide range
of mechanical properties in the annealed and cold worked condition.
Type 201 is non-magnetic in the annealed condition but becomes
magnetic as a result of cold working.
Surface Finish:
| Surface Finish | Definition | Application |
| 2B | Finished by heat treatment, pickling after cold rolling. Followed
by skin pass line to be more brighter and smooth surface | General application Medical instruments, Tableware |
| BA | Bright heat treament after cold rolling | Kitchen utensil, kitchenware, architectural |
| 8K | A mirror-like reflective surface by polishing with finer abrasives
over 800mesh | Construction, mirrors, plate sets, decoration elevators |
| HL | Finished by continuous linear polishing | Architectural purpose, Escalators, kitchenware, vehicles |
| NO.1 | Finished by hot rolling, annealing and picking, characterized by
white pickled surface | Chemical industry Equipment, industrail tanks |
| NO.4 | Polishing with NO.150 to NO.180 mesh abrasives specified in
JISR6001 | Kitchen utensils, Building Construction, Medical equipment |
Packing:
AISI 201 202 Hot Rolling Straightening Steel Sheet ASTM Standard
A480 Packing 2 types:
l Standard packing
l Fine packing
Factory and Machine Equipment:
We had our own factory to do slitting re-rolling and finish
treatment machine,PVC and interleaving paper we will using with our
machine for you,could protect stainless steel surface from damage
or any scratches,
1. CNC Flame Cutting Machine
2. CNC Plasma Cutting Machine
3. CNC Laser Cutting Machine
4. Bending Machine
5. Shearing Machine
6. Punch Machine
7. Driving Machine

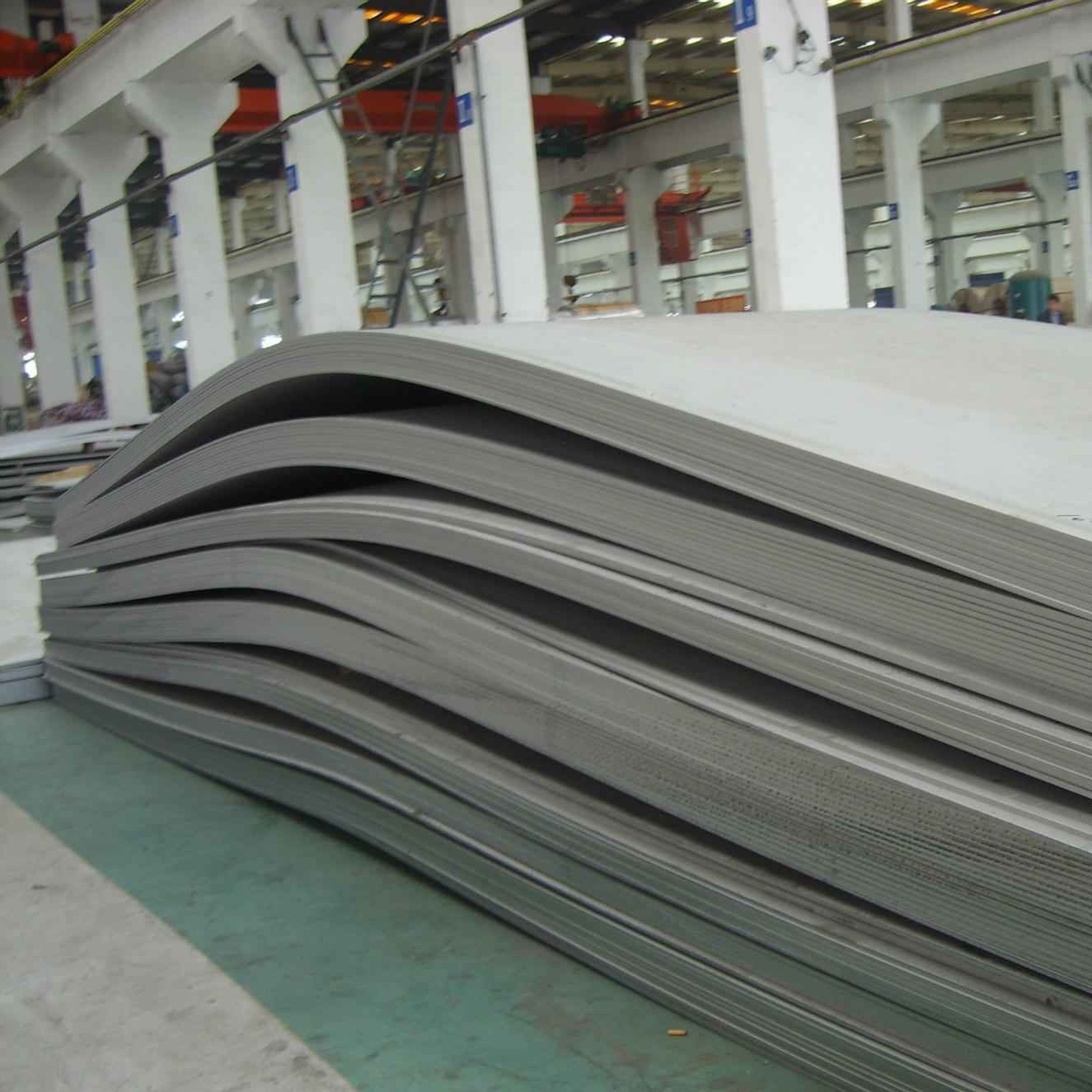

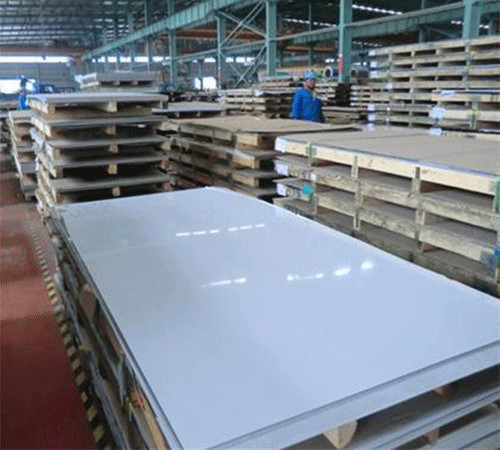

AISI 201 202 Hot Rolling Straightening Steel Sheet ASTM Standard
A480 Diaplay:
WHY CHOOSE US:
Q1: What is your terms of payment?
A: 30% T/T in advance, the balance 70% before delivery. We will
show you the photos of products and package before you pay the
balance.
Q2: what is the terms of delivery?
A: FOB, CIF, CFR,
Q3: What is the terms of packing?
A: generally, we pack our goods in bundles or coils with rods or
belts, we could also pack the goods as the customers' requirement.
Q4: What is your delivery time?
A: For stocks, we could transport the goods to loading port within
7 days after we received your deposit.
For production period, it usually takes about 15 days-30 days after
receiving the deposit.
Q5: Could you produce according to the samples?
A : Yes, we could customer-made by your samples or technique
drawings, we could build the mold and fixtures.
Q6: Could you provide the samples?
A: yes, we could provide the free samples on conditons it is
available in stocks, however, the the transportation fee is borne
by buyer.
420 grade stainless steel has a composition of 12 to 14 percent chromium, 0.15 percent carbon, 1 percent manganese, 1 percent
silicon, and tiny amounts of phosphorus and sulfur. 440 grade
stainless steel has higher amounts of chromium -- 16 to 18 percent
-- and carbon at 0.6 to 0.75 percent.
