Stainless Steel Hot Rolled Plate Stainless Steel Sheet 316L 6mm
316L is widely used in the chemical industry because of its
excellent corrosion resistance. 316L is also a derivative steel of
18-8 austenitic stainless steel, with 2 ~ 3% Mo added. On the basis
of 316L, many steel grades are also derived. For example, 316Ti is
derived after adding a small amount of Ti, 316N is derived after
adding a small amount of N, and 317L is derived by increasing the
content of Ni and mo.
Product introduction:
| Commodity | Stainless Steel Hot Rolled Plate Stainless Steel Sheet 316l 6mm |
| Grade | 316L |
| Brand | TISCO ,BAOSTEEL,POSCO,JISCO,LISCO |
| Certification | SGS,BV,IQI,TUV,ISO,etc |
| Thickness | 3-100 mm |
| Width | 1219 mm |
| Length | 2438mm |
| Surface | NO.1 2D NO.3 |
| Standard | JIS,AISI,ASTM,GB,DIN |
| Delivery time | About 15 -30 days or based on the sales contract |
| MOQ | 1 Ton |
| Advantages | Hot rolling can greatly reduce energy consumption and costs. The
metal plastic deformation is high during hot rolling, and the
deformation resistance is low, which reduces the energy consumption
of metal deformation. Hot rolling can improve the processing
performance of metals and alloys. |
Brand Cross Reference Table:
| GB NEW BRAND | JIS | ASTM | UNS | KS | BS EN | AS |
| 022Cr17Ni12Mo2 | SUS316L | 316L | S31603 | STS316L | 1.4404 | 316L |
Gauge and Inch:
| Gauge | SS inch | SS mm | Mild Steel | Galvanized Steel |
| | | | |
| 3 | 0.25 | 6.35 | 0.2391 | |
| 4 | 0.2344 | 5.95376 | 0.2242 | |
| 5 | 0.2187 | 5.55498 | 0.2092 | |
| 6 | 0.2031 | 5.15874 | 0.1943 | |
| 7 | 0.1875 | 4.7625 | 0.1793 | |
| 8 | 0.165 | 4.191 | 0.1644 | 0.168 |
| 9 | 0.1562 | 3.96748 | 0.1495 | 0.1532 |
| 10 | 0.1406 | 3.57124 | 0.1345 | 0.1382 |
| 11 | 0.125 | 3.175 | 0.1196 | 0.1233 |
| 12 | 0.1094 | 2.77876 | 0.1046 | 0.1084 |
| 13 | 0.0937 | 2.37998 | 0.0897 | 0.0934 |
| 14 | 0.0781 | 1.98374 | 0.0747 | 0.0785 |
| 15 | 0.0703 | 1.78562 | 0.0673 | 0.071 |
| 16 | 0.0625 | 1.5875 | 0.0598 | 0.0635 |
| 17 | 0.0562 | 1.42748 | 0.0538 | 0.0575 |
| 18 | 0.05 | 1.27 | 0.0478 | 0.0516 |
| 19 | 0.0437 | 1.10998 | 0.0418 | 0.0456 |
| 20 | 0.0375 | 0.9525 | 0.0359 | 0.0396 |
| 21 | 0.0344 | 0.87376 | 0.0329 | 0.0366 |
| 22 | 0.0312 | 0.79248 | 0.0299 | 0.0336 |
| 23 | 0.0281 | 0.71374 | 0.0269 | 0.0306 |
| 24 | 0.025 | 0.635 | 0.0239 | 0.0276 |
| 25 | 0.0219 | 0.55626 | 0.0209 | 0.0247 |
Chemical Composition:
| Grade | C | Si | Mn | P | S | Ni | Cr | Mo | N |
| 316L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 12.00～15.00 | 16.00～18.00 | 2.00～3.00 | |
Physical Property:
| Grade | Tensile Strength(Mpa) | Yield Strength(Mpa) | Elongation(%) | HBW | HRB | HV |
| 316L | ≥480 | ≥175 | ≥40 | ≤187 | ≤90 | ≤200 |
Difference:
The two most commonly used stainless steels 304316 (or
1.4308,1.4408 corresponding to German / European standards), the
main difference between 316 and 304 in chemical composition is that
:
316 contains Mo, and it is generally recognized that 316 has better
corrosion resistance and is more corrosion resistant than 304 in
high temperature environment. Therefore, in high temperature
environment, engineers generally choose 316 parts. But the
so-called thing is not absolute. In the concentrated sulfuric acid
environment, do not use 316 at any high temperature. Otherwise, it
will be big. People who study mechanics have all studied threads. I
still remember a black solid lubricant that needs to be applied to
prevent threads from biting at high temperature: molybdenum
disulfide (MoS2), from which two conclusions can be drawn:
1: Mo is indeed a high-temperature resistant material (do you know
what crucible gold is melted in? Molybdenum crucible!).
2: Molybdenum easily reacts with high valence sulfur ions to form
sulfide. Therefore, no stainless steel is super invincible and
corrosion resistant. In the final analysis, stainless steel is a
steel with more impurities (but these impurities are more
corrosion-resistant than steel). If it is steel, it can react with
other substances.
Surface Finish:
| Surface Finish | Definition | Application |
| 2B | Finished by heat treatment, pickling after cold rolling. Followed
by skin pass line to be more brighter and smooth surface | General application Medical instruments, Tableware |
| BA | Bright heat treament after cold rolling | Kitchen utensil, kitchenware, architectural |
| 8K | A mirror-like reflective surface by polishing with finer abrasives
over 800mesh | Construction, mirrors, plate sets, decoration elevators |
| HL | Finished by continuous linear polishing | Architectural purpose, Escalators, kitchenware, vehicles |
| NO.1 | Finished by hot rolling, annealing and picking, characterized by
white pickled surface | Chemical industry Equipment, industrail tanks |
| NO.4 | Polishing with NO.150 to NO.180 mesh abrasives specified in
JISR6001 | Kitchen utensils, Building Construction, Medical equipment |
Packing:
Stainless Steel Hot Rolled Plate Stainless Steel Sheet 316L 6mm Packing 2 types:
l Standard packing
l Fine packing
Factory and Machine Equipment:
We had our own factory to do slitting re-rolling and finish
treatment machine,PVC and interleaving paper we will using with our
machine for you,could protect stainless steel surface from damage
or any scratches,
1. CNC Flame Cutting Machine
2. CNC Plasma Cutting Machine
3. CNC Laser Cutting Machine
4. Bending Machine
5. Shearing Machine
6. Punch Machine
7. Driving Machine

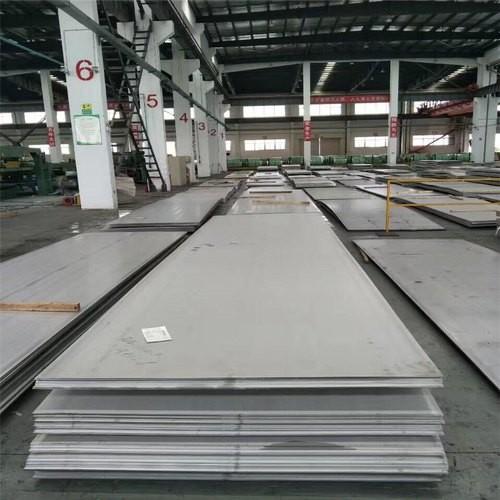

Stainless Steel Hot Rolled Plate Stainless Steel Sheet 316L 6mm Diaplay:
WHY CHOOSE US:
Q1: What is your terms of payment?
A: 30% T/T in advance, the balance 70% before delivery. We will
show you the photos of products and package before you pay the
balance.
Q2: what is the terms of delivery?
A: FOB, CIF, CFR,
Q3: What is the terms of packing?
A: generally, we pack our goods in bundles or coils with rods or
belts, we could also pack the goods as the customers' requirement.
Q4: What is your delivery time?
A: For stocks, we could transport the goods to loading port within
7 days after we received your deposit.
For production period, it usually takes about 15 days-30 days after
receiving the deposit.
Q5: Could you produce according to the samples?
A : Yes, we could customer-made by your samples or technique
drawings, we could build the mold and fixtures.
Q6: Could you provide the samples?
A: yes, we could provide the free samples on conditons it is
available in stocks, however, the the transportation fee is borne
by buyer.
