Galvanized Spangle Corrugated Roof Sheet Hot Dip Gauge 22 Zinc Coated

Ask Lasest Price
Brand Name :	TISCO,BAOSTEEL,POSCO,JISCO,LISCO
Certification :	MTC; SGS
Price :	Negotiable
Payment Terms :	L/C, T/T
Supply Ability :	100 tons per month
Delivery Time :	7-15 days

Add to Cart

Product Details
Company Profile

Galvanized Spangle Corrugated Roof Sheet Hot Dip Gauge 22 Zinc Coated

Galvanized Small Spangle Corrugated Roof Sheet Hot Dip Gauge 22 Zinc Coated

The dictionary defines “spangle” as a glittering object. When the word spangle is used to describe the surface appearance of galvanized steel sheet, it means the typical snowflake-like or six-fold star pattern that is visible to the unaided eye.

feature of galvanized sheet. Spangle size can be affected not only by the zinc chemistry and cooling rate, but also by other factors such as the smoothness of the substrate. Consistently controlling spangle formation to a specified size, and then verifying compliance, would be an extremely difficult task. For this reason, spangle size terminology is qualitative. It is defined in ASTM A653/A653M, Specification for Steel Sheet, Zinc-Coated (Galvanized) as follows:

Product introduction:

Product Name	Galvanized Small Spangle Corrugated Roof Sheet Hot Dip Gauge 22 Zinc Coated
Standard	JIS G3302 1998, ASTM A653M/A924M 2004, all according to the customer's request
Grade	DX51D,DX52D,DX53D,SGCC,SPGC,SECC,S220GD,S280GD,DC01,DC02,DC03 etc.
SIZE	Thickness	0.12-6.0 mm or as required
	Width	100-1500mm or as required
	Length	1000mm-12000mm or as your request
	Tolerance	Thickness& Width:+/-0.02mm
Technique	Hot Rolled/cold rolled
Coating Weight	30-275g/m2,double side
Spangle	Big spangle, normal spangle, small spangle, non-spangle
Delivery Time	within 7-15 days after receive 30% deposit or depend on Quantity
Application	Building , Corrugated sheet Roofing, electrical, Appliances, Automobile industry,Transport Packaging ,Machinery processing ,Interior decoration , Medical
Packing	Seaworthy packaging: PVC+waterproof paper, seaworthy wooden packaging or as required

Gauge and Thickness Inch:

Gauge	Mild Steel	Aluminum	Galvanized Steel	Stainless Steel

3	0.2391	0.2294		0.2500
4	0.2242	0.2043		0.2344
5	0.2092	0.1819		0.2187
6	0.1943	0.1620		0.2031
7	0.1793	0.1443		0.1875
8	0.1644	0.1285	0.1680	0.1650
9	0.1495	0.1144	0.1532	0.1562
10	0.1345	0.1019	0.1382	0.1406
11	0.1196	0.0907	0.1233	0.1250
12	0.1046	0.0808	0.1084	0.1094
13	0.0897	0.0720	0.0934	0.0937
14	0.0747	0.0641	0.0785	0.0781
15	0.0673	0.0571	0.0710	0.0703
16	0.0598	0.0508	0.0635	0.0625
17	0.0538	0.0453	0.0575	0.0562
18	0.0478	0.0403	0.0516	0.0500
19	0.0418	0.0359	0.0456	0.0437
20	0.0359	0.0320	0.0396	0.0375
21	0.0329	0.0285	0.0366	0.0344
22	0.0299	0.0253	0.0336	0.0312
23	0.0269	0.0226	0.0306	0.0281
24	0.0239	0.0201	0.0276	0.0250
25	0.0209	0.0179	0.0247	0.0219
26	0.0179	0.0159	0.0217	0.0187
27	0.0164	0.0142	0.0202	0.0172
28	0.0149	0.0126	0.0187	0.0156
29	0.0135	0.0113	0.0172	0.0141
30	0.0120	0.0100	0.0157	0.0125
31	0.0105	0.0089	0.0142	0.0109
32	0.0097	0.0080	0.0134	0.0102
33	0.0090	0.0071		0.0094
34	0.0082	0.0063		0.0086
35	0.0075	0.0056		0.0078
36	0.0067			0.0070

Chemical Composition:

Category		Grade	Chemical Composition,%,≤
hot dip galvanized	For cold forming National sign	Grade	C	Si	Mn	P	S	Ti
		DX51D+Z	0.12	0.5	0.6	0.1	0.045	0.3
		DX52D+Z	0.12	0.5	0.6	0.1	0.045	0.3
		DX53D+Z	0.12	0.5	0.6	0.1	0.045	0.3
		DX54D+Z	0.12	0.5	0.6	0.1	0.045	0.3
		DX56D+Z	0.12	0.5	0.6	0.1	0.045	0.3
		DX57D+Z	0.12	0.5	0.6	0.1	0.045	0.3
	For cold forming US grade	CSA	0.1		0.6	0.03	0.035	0.025
		CSB	0.02-0.15		0.6	0.03	0.035	0.025
		CSC	0.08		0.6	0.1	0.035	0.025
		FSA	0.1		0.5	0.02	0.035	0.025
		FSB	0.02-0.08		0.5	0.02	0.03	0.025
		DDS A	0.06		0.5	0.02	0.025	0.025
		DDS B	0.02		0.5	0.1	0.025	0.15
		EDDS	0.02		0.4	0.02	0.02	0.15
	For cold forming Japanese grade	SGCC	0.15		0.8	0.05	0.03
		SGCD1	0.12		0.6	0.04	0.03
		SGCD2	0.1		0.45	0.03	0.03
		SGCD3	0.08		0.45	0.03	0.03
		SGCD4	0.06		0.45	0.03	0.03
	For structure Japanese grade	SGC340	0.25		1.7	0.2	0.035
		SGC400	0.25		1.7	0.2	0.035
		SGC440	0.25		2	0.2	0.035
		SGC490	0.3		2	0.2	0.035
		SGC510	0.3		2.5	0.2	0.035
	For structure National sign	S220GD+Z	0.02	0.6	0.7	0.1	0.045
		S250GD+Z	0.02	0.6	0.7	0.1	0.045
		S280GD+Z	0.02	0.6	0.7	0.1	0.045
		S320GD+Z	0.02	0.6	0.7	0.1	0.045
		S350GD+Z	0.02	0.6	0.7	0.1	0.045
		S550GD+Z	0.02	0.6	0.7	0.1	0.045
hot dip Galvalume	For cold formingNational sign	DX51D+AZ	0.12	0.5	0.6	0.1	0.045	0.3
		DX52D+AZ	0.12	0.5	0.6	0.1	0.045	0.3
		DX53D+AZ	0.12	0.5	0.6	0.1	0.045	0.3
		DX54D+AZ	0.12	0.5	0.6	0.1	0.045	0.3
	For structureNational sign	S220GD+Z	0.02	0.6	0.7	0.1	0.045
		S250GD+Z	0.02	0.6	0.7	0.1	0.045
		S280GD+Z	0.02	0.6	0.7	0.1	0.045
		S320GD+Z	0.02	0.6	0.7	0.1	0.045
		S350GD+Z	0.02	0.6	0.7	0.1	0.045
		S550GD+Z	0.02	0.6	0.7	0.1	0.045

Physical Property:

Category		Grade	Yield Strength	Tensile strength	Elongation
hot dip galvanized	For cold formingNational sign	Grade	ReL/Mpa	RM/Mpa	A80mm/%
		DX51D+Z		270-500	≥22
		DX52D+Z	140-300	270-420	≥26
		DX53D+Z	140-260	270-380	≥30
		DX54D+Z	120-220	260-350	≥36
		DX56D+Z	120-280	260-350	≥39
		DX57D+Z	120-170	260-350	≥41
	For cold formingUS grade	CSA	170-380		≥20
		CSB	250-380		≥20
		CSC	170-410		≥15
		FSA	170-310		≥26
		FSB	170-310		≥26
		DDS A	140-240		≥32
		DDS B	170-280		≥32
		EDDS	105-170		≥40
	For cold formingJapanese grade	SGCC	≥205	≥270
		SGCD1		≥270	≥36
		SGCD2		≥270	≥38
		SGCD3		≥270	≥40
		SGCD4		≥270	≥42
	For structureJapanese grade	SGC340	≥245	≥340	≥20
		SGC400	≥295	≥400	≥18
		SGC440	≥335	≥440	≥18
		SGC490	≥365	≥490	≥16
		SGC510	≥560	≥570
	For structureNational sign	S220GD+Z	≥220	≥300	≥20
		S250GD+Z	≥250	≥330	≥19
		S280GD+Z	≥280	≥360	≥18
		S320GD+Z	≥320	≥390	≥17
		S350GD+Z	≥350	≥420	≥16
		S550GD+Z	≥550	≥560
hot dip Galvalume	For cold formingNational sign	DX51D+AZ		270-500	≥22
		DX52D+AZ	140-300	270-420	≥26
		DX53D+AZ	140-260	270-380	≥30
		DX54D+AZ	120-220	260-350	≥36
	For structureNational sign	S220GD+Z	≥220	≥300	≥20
		S250GD+Z	≥250	≥330	≥19
		S280GD+Z	≥280	≥360	≥18
		S320GD+Z	≥320	≥390	≥17
		S350GD+Z	≥350	≥420	≥16
		S550GD+Z	≥550	≥560

What is Hot Dip

Hot-dip galvanization is a form of galvanization. It is the process of coating iron and steel with zinc, which alloys with the surface of the base metal when immersing the metal in a bath of molten zinc at a temperature of around 450 °C (842 °F).

Surface Finish:

Galvanized Spangle Corrugated Roof Sheet Hot Dip Gauge 22 Zinc Coated

Name	Code	Instructions
Ordinary surface	FA	Ordinary surface
Higher finish surface	FB	Small corrosion points, dark spots, band marks, zinc particles, passivation defects are allowed
High finish surface	FC	No corrosion spots are allowed, but minor indentation, scratch, zinc flow ripple, minor passivation defects are allowed in a small area, and the FA surface is maintained on the other side at least

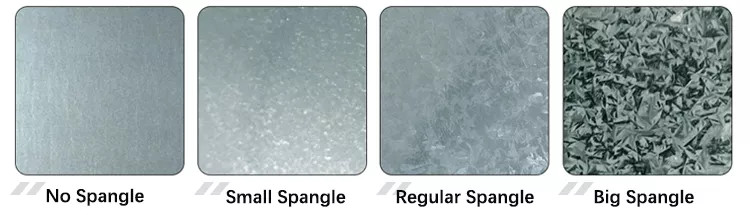

Name	other name	Instructions
No Spangle	0 Spangle; Spangle Free	zinc-coated steel sheet with a uniform finish in which the surface irregularities created by spangle formation are not visible to the naked eye. The finish is produced by a combination of coating bath chemistry, or cooling.
Small Spangle	Minimized spangle	zinc-coated steel sheet in which the grain pattern is visible to the unaided eye, and is typically smaller and less distinct than the pattern visible on regular spangle. The zinc crystal growth is arrested by special production techniques, or is inhibited by a combination of coating bath chemistry plus cooling.
Regular Spangle	Simple Spangle	zinc-coated steel sheet with a visible multifaceted zinc crystal structure. The cooling rate is uncontrolled, which produces a variable grain size.

Product Display:

Galvanized Spangle Corrugated Roof Sheet Hot Dip Gauge 22 Zinc Coated

Packing:

Galvanized Small Spangle Corrugated Roof Sheet Hot Dip Gauge 22 Zinc Coated Packing 2 types:

l Standard packing

l Fine packing

WHY CHOOSE US:

Q1: What is your terms of payment?
A: 30% T/T in advance, the balance 70% before delivery. We will show you the photos of products and package before you pay the balance.

Q2: what is the terms of delivery?
A: FOB, CIF, CFR,

Q3: What is the terms of packing?
A: generally, we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers' requirement.

Q4: What is your delivery time?
A: For stocks, we could transport the goods to loading port within 7 days after we received your deposit.
For production period, it usually takes about 15 days-30 days after receiving the deposit.

Q5: Could you produce according to the samples?
A : Yes, we could customer-made by your samples or technique drawings, we could build the mold and fixtures.

Q6: Could you provide the samples?
A: yes, we could provide the free samples on conditons it is available in stocks, however, the the transportation fee is borne by buyer.
