Ral1013 PPGL Steel Coil G40 Precoated Zinc Coating Galvanized Steel Coil PPGI

Ask Lasest Price
Brand Name :	SHOUGANG; ANSTEEL; MASTEEL; BXSTEEL
Certification :	MTC; SGS；
Price :	Negotiable
Payment Terms :	T/T, L/C, Western Union
Supply Ability :	300 tons per month
Delivery Time :	10-25 working days
Model Number :	G40

Add to Cart

Product Details
Company Profile

Ral1013 PPGL Steel Coil G40 Precoated Zinc Coating Galvanized Steel Coil PPGI

Ral1013 PPGL Z120 G40 Precoated Zinc Coating Galvanized Steel Coil

PPGI is pre-painted galvanised iron, also known as pre-coated steel, coil coated steel, color coated steel etc., typically with a hot dip zinc coated steel substrate. The term is an extension of GI which is a traditional abbreviation for Galvanized Iron.

Product Introduction:

Commodity	Ral1013 PPGL Steel Coil G40 Precoated Zinc Coating Galvanized Steel Coil PPGI
Grade	SPGC ,SPCC, DC51D+AZ
Brand	SHOUGANG; ANSTEEL; MASTEEL; BXSTEEL
Certification	SGS,BV,IQI,TUV,ISO,etc
Thickness	0.45 MM
Width	1250 MM
Length	2000MM
Surface	Prepainted
Standard	JIS,AISI,ASTM,GB,DIN, BS EN, AS
Delivery time	About 25 or based on the sales contract
MOQ	25 Ton

Advantages:

PPGI Roofing Sheet production process is less harmful to the environment, and can be recycled, greatly reducing the pollution to the environment, and light weight, can save load-bearing Structure materials, reduce the cost.

Product Show:

PP:

Pre-paint steel is a bare metal substrate or corrosion resistant substrate that has had paint applied to both sides through a continuous coil coating process, which produces a uniform paint finish. The metal is unwound, cleaned and chemically treated during the process.

Application:

Pre-painted Galvanized Iron (PPGI)

The hot dip metallic coating process is typically used to coat steel sheet and coil which all may be factory pre-painted like PPGI. PPGI is also used to refer to metallic coated steels that have been pre-painted, by TSC offers PPGI that is zinc coated steel

Gauge Size Table:

Gauge	SS inch	SS mm	Mild Steel	Galvanized Steel

3	0.25	6.35	0.2391
4	0.2344	5.95376	0.2242
5	0.2187	5.55498	0.2092
6	0.2031	5.15874	0.1943
7	0.1875	4.7625	0.1793
8	0.165	4.191	0.1644	0.168
9	0.1562	3.96748	0.1495	0.1532
10	0.1406	3.57124	0.1345	0.1382
11	0.125	3.175	0.1196	0.1233
12	0.1094	2.77876	0.1046	0.1084
13	0.0937	2.37998	0.0897	0.0934
14	0.0781	1.98374	0.0747	0.0785
15	0.0703	1.78562	0.0673	0.071
16	0.0625	1.5875	0.0598	0.0635
17	0.0562	1.42748	0.0538	0.0575
18	0.05	1.27	0.0478	0.0516
19	0.0437	1.10998	0.0418	0.0456
20	0.0375	0.9525	0.0359	0.0396
21	0.0344	0.87376	0.0329	0.0366
22	0.0312	0.79248	0.0299	0.0336

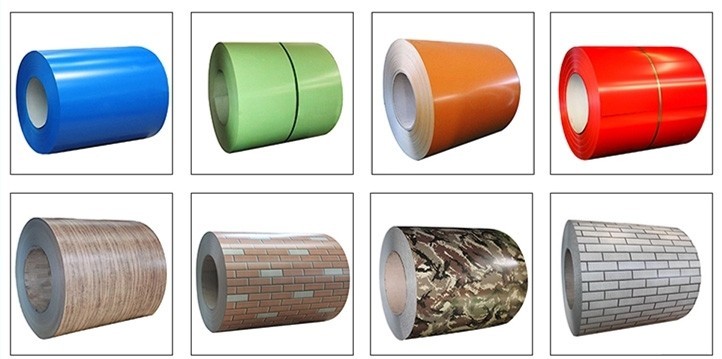

Surface finish :

Ral1013 PPGL Steel Coil G40 Precoated Zinc Coating Galvanized Steel Coil PPGI

What is the difference between galvanized and galvalume?

Galvanized steel is made completely of zinc, while galvalume includes aluminum, zinc, and a small amount of silicon. This provides superior durability and resistance to corrosion in comparison to galvanized coating

Packaging :

Ral1013 PPGL Steel Coil G40 Precoated Zinc Coating Galvanized Steel Coil PPGI

Ral1013 PPGL Z120 G40 Precoated Zinc Coating Galvanized Steel Coil packaging details :

1: Coils covered with waterproof protective packing materails ;
2: Then loaded in strong metal pallets +angle bar protection +steel strip ;
3: Well loaded and be transported to the loading port .

The innner size container as below :

1: 20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high) about 24-26CBM ;
2: 40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM ;
3: 40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBM.

Product Display:

Ral1013 PPGL Steel Coil G40 Precoated Zinc Coating Galvanized Steel Coil PPGI
