Widely Used Hot Rolled Bar Grade 316Ti Carbide Hot Rolled Steel
Flat Bar
316Ti is a metal material. Ti is added to SUS316 steel to improve
the resistance to intergranular corrosion. Equipment used to resist
sulfuric acid, phosphoric acid and acetic acid.
Product introduction:
| Commodity | 6m ASTM 2B Cold Rolled 304 Stainless Steel Flat Bar 2.5mm Thickness |
| Grade | 304 |
| Brand | TISCO ,BAOSTEEL,POSCO,JISCO,LISCO |
| Certification | SGS,BV,IQI,TUV,ISO,etc |
| Thickness | 4.5 mm |
| Width | 10-300mm |
| Length | 5.8m,6m or customized length |
| Surface | Hot rolled |
| Standard | JIS,AISI,ASTM,GB,DIN |
| Delivery time | About15-30 days or based on the sales contract |
| MOQ | 1 TON |
| Advanatages | Stainless steel bar is widely used in hardware, shipbuilding,
petrochemical, machinery,medicine,food,electric power, energy,
building upholster,nuclear power,aerospace,military industry and
other industries,marine equipment,chemical,dyestuff, paper-making,
oxalic acid,fertilizer and other production equipment, food
industry,coastal facilities,rope,CD rod,bolts and nuts |
Mechanical property:
| Grade | YS(Mpa) | TS(Mpa) | EL(%) | HV/HB Hardness |
| 304 | ≥205 | ≥520 | ≥40 | ≤200HV |
| 304L | ≥175 | ≥480 | ≥40 | ≤200HV |
| 316 | ≥205 | ≥520 | ≥40 | ≤200HV |
| 316L | ≥175 | ≥480 | ≥40 | ≤200HV |
| 430 | ≥205 | ≥450 | ≥22 | ≤200HV |
| SAF2507 | ≥800 | ≥550 | ≥15 | ≤310HB |
| SAF2205 | ≥620 | ≥440 | ≥25 | ≤290HB |
Chemical Composition:
| Grade | C | Si | Mn | P | S | Ni | Cr | Mo |
| 201 | ≤0.15 | ≤1.00 | 5.5～7.5 | ≤0.060 | ≤0.03 | 3.5～5.5 | 16.00～18.00 | - |
| 202 | ≤0.15 | ≤1.00 | 7.5～10.0 | ≤0.060 | ≤0.03 | 4.0～6.0 | 17.00～19.00 | - |
| 301 | ≤0.15 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 6.00～8.00 | 16.00～18.00 | - |
| 302 | ≤0.15 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 8.00～10.00 | 17.00～19.00 | - |
| 304 | ≤0.07 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 8.00～10.00 | 18.00～20.00 | - |
| 304L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 9.00～13.00 | 18.00～20.00 | - |
| 310S | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 19.00～22.00 | 24.00～26.00 | - |
| 316 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 10.00～14.00 | 16.00～18.00 | 2.00～3.00 |
| 316L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 12.00～15.00 | 16.00～18.00 | 2.00～3.00 |
| 321 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 9.00～13.00 | 17.00～19.00 | - |
| 410 | ≤0.15 | ≤1.00 | ≤1.00 | ≤0.040 | ≤0.03 | | 11.500～13.50 | - |
| 430 | ≤0.12 | ≤1.00 | ≤1.00 | ≤0.040 | ≤0.03 | | 16.00～18.00 | - |
Stainless steel has better corrosion resistance than 304 stainless
steel, and has good corrosion resistance in the production process
of pulp and paper. Moreover, 316 stainless steel is also resistant
to marine and aggressive industrial atmosphere. 316 stainless steel
has good oxidation resistance in intermittent use below 1600
degrees and continuous use below 1700 degrees. In the range of
800-1575 degrees, Zui should not continuously act on 316 stainless
steel, but when 316 stainless steel is continuously used outside
this temperature range, the stainless steel has good heat
resistance. The carbide precipitation resistance of 316L stainless
steel is better than that of 316 stainless steel, and the above
temperature range can be used. Annealing in the temperature range
of 1850-2050 degrees, then rapid annealing, and then rapid
cooling., It has high temperature resistance, easy processing and
high strength. 316L stainless steel, post weld annealing is not
required.
Brand Cross Reference Table:
| GB NEW BRAND | JIS | ASTM | UNS | KS | BS EN | AS |
| 12Cr17Mn6Ni5N | SUS201 | 201 | S20100 | STS201 | 1.4372 | 201-2 |
| 12Cr18Mn9Ni5N | SUS202 | 202 | S20200 | STS202 | 1.4373 | - |
| 12Cr17Ni7 | SUS301 | 301 | S30100 | STS301 | 1.4319 | 301 |
| 06Cr19Ni10 | SUS304 | 304 | S30400 | STS304 | 1.4301 | 304 |
| 022Cr19Ni10 | SUS304L | 304L | S30403 | STS304L | 1.4306 | 304L |
| 06Cr19Ni10N | SUS304N1 | 304N | S30451 | STS304N1 | 1.4315 | 304N1 |
| 06Cr19Ni9NbN | SUS304N2 | XM21 | S30452 | STS304N2 | - | 304N2 |
| 022Cr19Ni10N | SUS304LN | 304LN | S30453 | STS304LN | - | 304LN |
| 10Cr18Ni12 | SUS305 | 305 | S30500 | STS305 | 1.4303 | 305 |
| 06Cr23Ni13 | SUS309S | 309S | S30908 | STS309S | 1.4833 | 309S |
| 06Cr25Ni20 | SUS310S | 310S | S31008 | STS310S | 1.4845 | 310S |
| 06Cr17Ni12Mo2 | SUS316 | 3016 | S31600 | STS316 | 1.4401 | 316 |
| 06Cr17Ni12Mo2Ti | SUS316Ti | 316Ti | S31635 | - | 1.4571 | 316Ti |
| 022Cr17Ni12Mo2 | SUS316L | 316L | S31603 | STS316L | 1.4404 | 316L |
| 06Cr17Ni12Mo2N | SUS316N | 316N | S31651 | STS316N | - | 316N |
| 022Cr17Ni13Mo2N | SUS316LN | 316LN | S31653 | STS316LN | 1.4429 | 316LN |
| 06Cr18Ni12Mo2Cu2 | SUS316J1 | - | - | STS316J1 | - | 316J1 |
| 022Cr18Ni14Mo2Cu2 | SUS316J1L | - | - | STS316J1L | - | - |
| 06Cr19Ni13Mo3 | SUS317 | 317 | S31700 | STS317 | - | 317 |
Surface finish :
Packaging:
Widely Used Hot Rolled Bar Grade 316Ti Carbide Hot Rolled Steel
Flat Bar packaging details :
1:Each steel bar has the single protective package and several be
bundled togehter ;
2:Stainless steel flat bars will be packaged with protective
packing materials
and bundled with strong strips ;
3: Well loaded and be transported to the loading port .
The innner size container as below :
1:20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high) about 24-26CBM
;
2:40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM ;
3:40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBM.

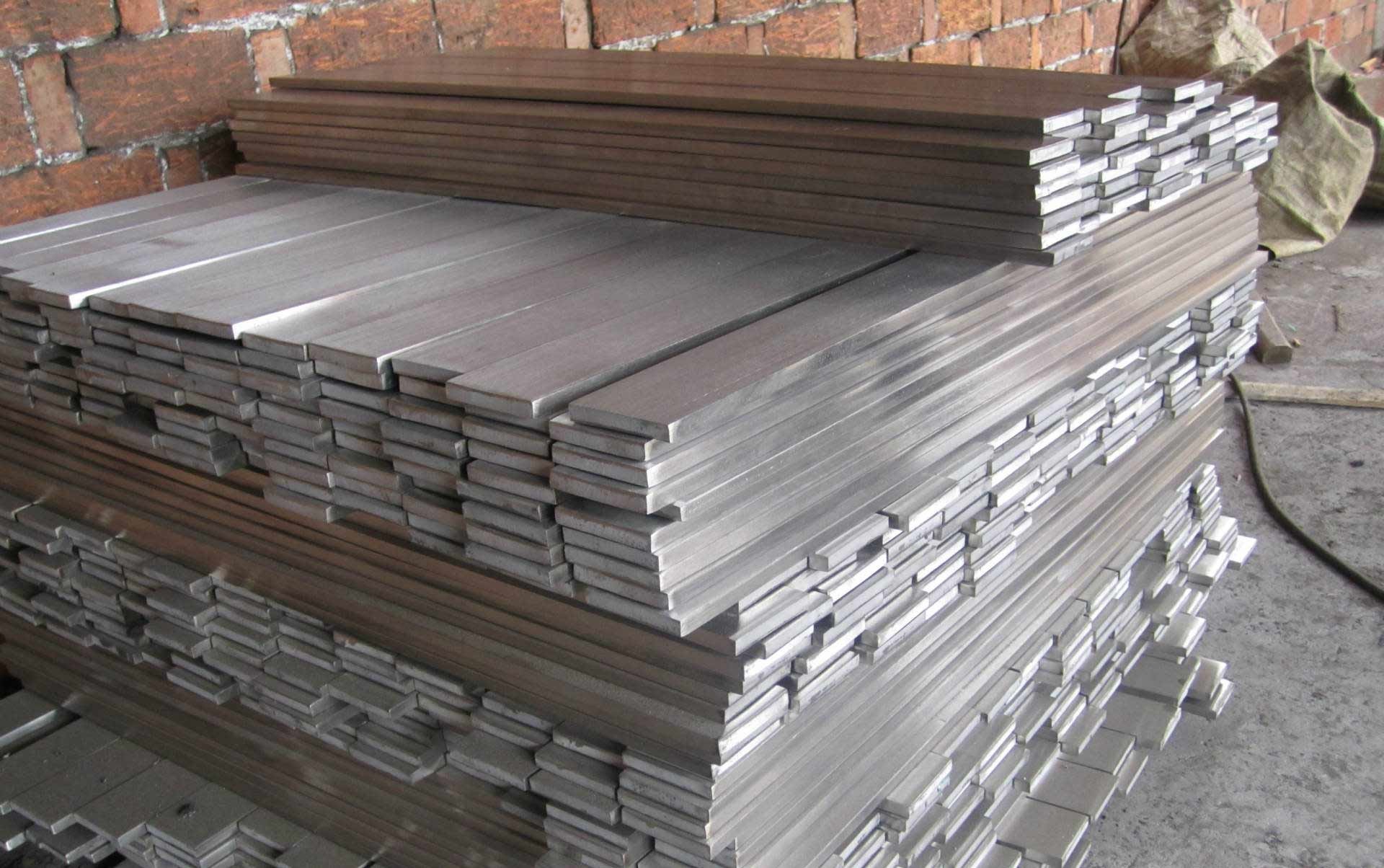

Products Show:
WHY CHOOSE US:
Q1: What is your terms of payment?
A: 30% T/T in advance, the balance 70% before delivery. We will
show you the photos of products and package before you pay the
balance.
Q2: what is the terms of delivery?
A: FOB, CIF, CFR,
Q3: What is the terms of packing?
A: generally, we pack our goods in bundles or coils with rods or
belts, we could also pack the goods as the customers' requirement.
Q4: What is your delivery time?
A: For stocks, we could transport the goods to loading port within
7 days after we received your deposit.
For production period, it usually takes about 15 days-30 days after
receiving the deposit.
Q5: Could you produce according to the samples?
A : Yes, we could customer-made by your samples or technique
drawings, we could build the mold and fixtures.
Q6: Could you provide the samples?
A: yes, we could provide the free samples on conditons it is
available in stocks, however, the the transportation fee is borne
by buyer.
