Pickled Polish U Shaped Stainless Steel Channel Sections 304 316 430 202

Ask Lasest Price
Brand Name :	TISCO,BAOSTEEL,POSCO,JISCO,LISCO
Certification :	MTC; SGS
Price :	Negotiable
Payment Terms :	L/C, T/T
Supply Ability :	250 tons per month
Delivery Time :	3-15 working days

Add to Cart

Product Details
Company Profile

Pickled Polish U Shaped Stainless Steel Channel Sections 304 316 430 202

Stainless Steel U Channel Stainless Steel Hexagonal Bar 304 316 430 202

U channels are used as trim for hand and stair railings, including escalators, in commercial spaces. Metal railings are easier to maintain and longer-lasting than their plastic or wood counterparts.

Product information:

Commodity	Stainless Steel U Channel Stainless Steel Hexagonal Bar 304 316 430 202
Grade	304 316 403 202
Brand	None
Certification	SGS,BV,IQI,TUV,ISO,etc
Thickness	2-10mm
Size	UPN30-UPN400, UPE80-UPE400,5#--40#
Length	5.8m,6m or customized length
Surface	Hot rolled,cold drawn,annealed, pickling
Standard	JIS,AISI,ASTM,GB,DIN
Delivery time	About15-30 days or based on the sales contract
MOQ	1 TON
Advanatages	Construction field, shipbuilding industry,petroleum, chemical industries, war and electricity industries,food processing and medical industry,boiler heat exchanger,machinery and hardware fields

Chemical Position:

Grade	C	Si	Mn	P	S	Ni	Cr	Mo
201	≤0.15	≤1.00	5.5～7.5	≤0.060	≤0.03	3.5～5.5	16.00～18.00	-
202	≤0.15	≤1.00	7.5～10.0	≤0.060	≤0.03	4.0～6.0	17.00～19.00	-
301	≤0.15	≤1.00	≤2.00	≤0.045	≤0.03	6.00～8.00	16.00～18.00	-
302	≤0.15	≤1.00	≤2.00	≤0.045	≤0.03	8.00～10.00	17.00～19.00	-
304	≤0.07	≤1.00	≤2.00	≤0.045	≤0.03	8.00～10.00	18.00～20.00	-
304L	≤0.03	≤1.00	≤2.00	≤0.045	≤0.03	9.00～13.00	18.00～20.00	-
310S	≤0.08	≤1.00	≤2.00	≤0.045	≤0.03	19.00～22.00	24.00～26.00	-
316	≤0.08	≤1.00	≤2.00	≤0.045	≤0.03	10.00～14.00	16.00～18.00	2.00～3.00
316L	≤0.03	≤1.00	≤2.00	≤0.045	≤0.03	12.00～15.00	16.00～18.00	2.00～3.00
321	≤0.08	≤1.00	≤2.00	≤0.045	≤0.03	9.00～13.00	17.00～19.00	-
410	≤0.15	≤1.00	≤1.00	≤0.040	≤0.03		11.500～13.50	-
430	≤0.12	≤1.00	≤1.00	≤0.040	≤0.03		16.00～18.00	-

Physical Property:

Grade	YS(Mpa)	TS(Mpa)	EL(%)	HV/HB Hardness
304	≥205	≥520	≥40	≤200HV
304L	≥175	≥480	≥40	≤200HV
316	≥205	≥520	≥40	≤200HV
316L	≥175	≥480	≥40	≤200HV
430	≥205	≥450	≥22	≤200HV
SAF2507	≥800	≥550	≥15	≤310HB
SAF2205	≥620	≥440	≥25	≤290HB

Surface Finish:

Surface Finish	Definition	Application
2B	Finished by heat treatment, pickling after cold rolling. Followed by skin pass line to be more brighter and smooth surface	General application Medical instruments, Tableware
BA	Bright heat treament after cold rolling	Kitchen utensil, kitchenware, architectural
8K	A mirror-like reflective surface by polishing with finer abrasives over 800mesh	Construction, mirrors, plate sets, decoration elevators
HL	Finished by continuous linear polishing	Architectural purpose, Escalators, kitchenware, vehicles
NO.1	Finished by hot rolling, annealing and picking, characterized by white pickled surface	Chemical industry Equipment, industrail tanks
NO.4	Polishing with NO.150 to NO.180 mesh abrasives specified in JISR6001	Kitchen utensils, Building Construction, Medical equipment

Packing:

Stainless Steel U Channel Stainless Steel Hexagonal Bar 304 316 430 202 packaging details :

1.with plastic cap to protect both ends
2.weaving bag wrapped outside the pipe
3.then pack into wooden case

The innner size container as below :

1:20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high) about 24-26CBM ;
2:40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM ;
3:40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBM.

Product Display:

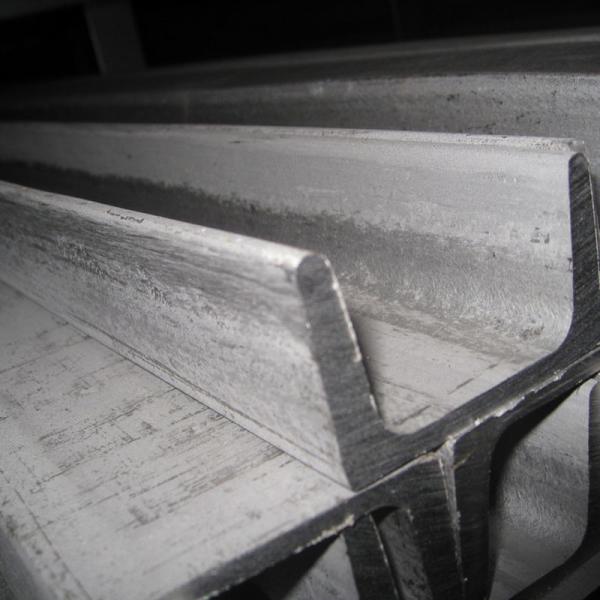

Pickled Polish U Shaped Stainless Steel Channel Sections 304 316 430 202

WHY CHOOSE US:

Q1: What is your terms of payment?
A: 30% T/T in advance, the balance 70% before delivery. We will show you the photos of products and package before you pay the balance.

Q2: what is the terms of delivery?
A: FOB, CIF, CFR,

Q3: What is the terms of packing?
A: generally, we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers' requirement.

Q4: What is your delivery time?
A: For stocks, we could transport the goods to loading port within 7 days after we received your deposit.
For production period, it usually takes about 15 days-30 days after receiving the deposit.

Q5: Could you produce according to the samples?
A : Yes, we could customer-made by your samples or technique drawings, we could build the mold and fixtures.

Q6: Could you provide the samples?
A: yes, we could provide the free samples on conditons it is available in stocks, however, the the transportation fee is borne by buyer.
