cold drawn AISI ASTM Stainless Steel Channel Bar 2mm For Steel Structure Building

Product Categories
Qingtuo Metal Products (Qingdao)Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap cold drawn AISI ASTM Stainless Steel Channel Bar 2mm For Steel Structure Building from wholesalers

    Buy cheap cold drawn AISI ASTM Stainless Steel Channel Bar 2mm For Steel Structure Building from wholesalers
    • Buy cheap cold drawn AISI ASTM Stainless Steel Channel Bar 2mm For Steel Structure Building from wholesalers
    • Buy cheap cold drawn AISI ASTM Stainless Steel Channel Bar 2mm For Steel Structure Building from wholesalers

    cold drawn AISI ASTM Stainless Steel Channel Bar 2mm For Steel Structure Building

    Ask Lasest Price
    Brand Name : TISCO,BAOSTEEL,POSCO,JISCO,LISCO
    Certification : MTC; SGS
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 250 tons per month
    Delivery Time : 3-15 working days
    • Product Details
    • Company Profile

    cold drawn AISI ASTM Stainless Steel Channel Bar 2mm For Steel Structure Building

    Stainless Steel Channel Sections Stainless Steel I Beam Bar Channel Steel


    The channel bars are used as studs similar to conventional wood frames. These would usually run vertically from the bottom of the wall to the top. The channel bar is able to help bear the vertical load of the building. Wood studs are durable but not as durable as galvanized channel bars.


    Product information:


    CommodityStainless Steel Channel Sections Stainless Steel I Beam Bar Channel Steel
    Grade200 300 400 series
    BrandNone
    CertificationSGS,BV,IQI,TUV,ISO,etc
    Thickness2-10mm
    SizeUPN30-UPN400, UPE80-UPE400,5#--40#
    Length5.8m,6m or customized length
    SurfaceHot rolled,cold drawn,annealed, pickling
    StandardJIS,AISI,ASTM,GB,DIN
    Delivery timeAbout15-30 days or based on the sales contract
    MOQ1 TON
    Advanatages

    Construction field, shipbuilding industry,petroleum, chemical

    industries, war and electricity industries,food processing and

    medical industry,boiler heat exchanger,machinery and hardware

    fields



    Chemical Position:


    GradeCSiMnPSNiCrMo
    201≤0.15≤1.005.5～7.5≤0.060≤0.033.5～5.516.00～18.00-
    202≤0.15≤1.007.5～10.0≤0.060≤0.034.0～6.017.00～19.00-
    301≤0.15≤1.00≤2.00≤0.045≤0.036.00～8.0016.00～18.00-
    302≤0.15≤1.00≤2.00≤0.045≤0.038.00～10.0017.00～19.00-
    304≤0.07≤1.00≤2.00≤0.045≤0.038.00～10.0018.00～20.00-
    304L≤0.03≤1.00≤2.00≤0.045≤0.039.00～13.0018.00～20.00-
    310S≤0.08≤1.00≤2.00≤0.045≤0.0319.00～22.0024.00～26.00-
    316≤0.08≤1.00≤2.00≤0.045≤0.0310.00～14.0016.00～18.002.00～3.00
    316L≤0.03≤1.00≤2.00≤0.045≤0.0312.00～15.0016.00～18.002.00～3.00
    321≤0.08≤1.00≤2.00≤0.045≤0.039.00～13.0017.00～19.00-
    410≤0.15≤1.00≤1.00≤0.040≤0.0311.500～13.50-
    430≤0.12≤1.00≤1.00≤0.040≤0.0316.00～18.00-

    Physical Property:


    GradeYS(Mpa)TS(Mpa)EL(%)HV/HB Hardness
    304≥205≥520≥40≤200HV
    304L≥175≥480≥40≤200HV
    316≥205≥520≥40≤200HV
    316L≥175≥480≥40≤200HV
    430≥205≥450≥22≤200HV
    SAF2507≥800≥550≥15≤310HB
    SAF2205≥620≥440≥25≤290HB

    Brand Cross Reference Table:


    GB NEW BRANDJISASTMUNSKSBS ENAS
    12Cr17Mn6Ni5NSUS201201S20100STS2011.4372201-2
    12Cr18Mn9Ni5NSUS202202S20200STS2021.4373-
    12Cr17Ni7SUS301301S30100STS3011.4319301
    06Cr19Ni10SUS304304S30400STS3041.4301304
    022Cr19Ni10SUS304L304LS30403STS304L1.4306304L
    06Cr19Ni10NSUS304N1304NS30451STS304N11.4315304N1
    06Cr19Ni9NbNSUS304N2XM21S30452STS304N2-304N2
    022Cr19Ni10NSUS304LN304LNS30453STS304LN-304LN
    10Cr18Ni12SUS305305S30500STS3051.4303305
    06Cr23Ni13SUS309S309SS30908STS309S1.4833309S
    06Cr25Ni20SUS310S310SS31008STS310S1.4845310S
    06Cr17Ni12Mo2SUS316316S31600STS3161.4401316
    06Cr17Ni12Mo2TiSUS316Ti316TiS31635-1.4571316Ti
    022Cr17Ni12Mo2SUS316L316LS31603STS316L1.4404316L
    06Cr17Ni12Mo2NSUS316N316NS31651STS316N-316N
    022Cr17Ni13Mo2NSUS316LN316LNS31653STS316LN1.4429316LN
    06Cr18Ni12Mo2Cu2SUS316J1--STS316J1-316J1
    022Cr18Ni14Mo2Cu2SUS316J1L--STS316J1L--

    Surface Finish:


    Surface FinishDefinitionApplication
    2BFinished by heat treatment, pickling after cold rolling. Followed by skin pass line to be more brighter and smooth surfaceGeneral application Medical instruments, Tableware
    BABright heat treament after cold rollingKitchen utensil, kitchenware, architectural
    8KA mirror-like reflective surface by polishing with finer abrasives over 800meshConstruction, mirrors, plate sets, decoration elevators
    HLFinished by continuous linear polishingArchitectural purpose, Escalators, kitchenware, vehicles
    NO.1Finished by hot rolling, annealing and picking, characterized by white pickled surfaceChemical industry Equipment, industrail tanks
    NO.4Polishing with NO.150 to NO.180 mesh abrasives specified in JISR6001Kitchen utensils, Building Construction, Medical equipment

    Packing:


    cold drawn AISI ASTM Stainless Steel Channel Bar 2mm For Steel Structure Building


    Stainless Steel Channel Sections Stainless Steel I Beam Bar Channel Steel​ packaging details :


    1. with plastic cap to protect both ends
    2. weaving bag wrapped outside the pipe
    3. then pack into wooden case


    The innner size container as below :


    1: 20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high) about 24-26CBM ;
    2: 40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM ;
    3: 40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBM.


    What is the difference between Angle and Channel?

    The specification and model of channel steel are expressed in the form of height (mm) × leg width (mm) × waist thickness (mm). Angle steel is the steel with the section at right angles, the thickness and width of both sides are basically the same.

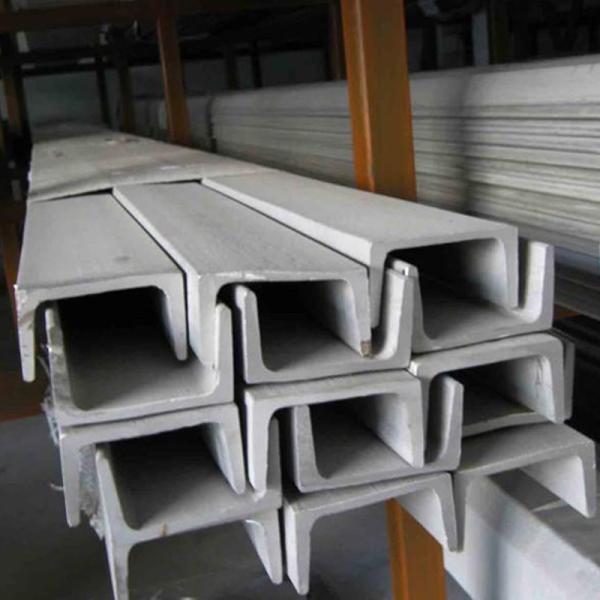

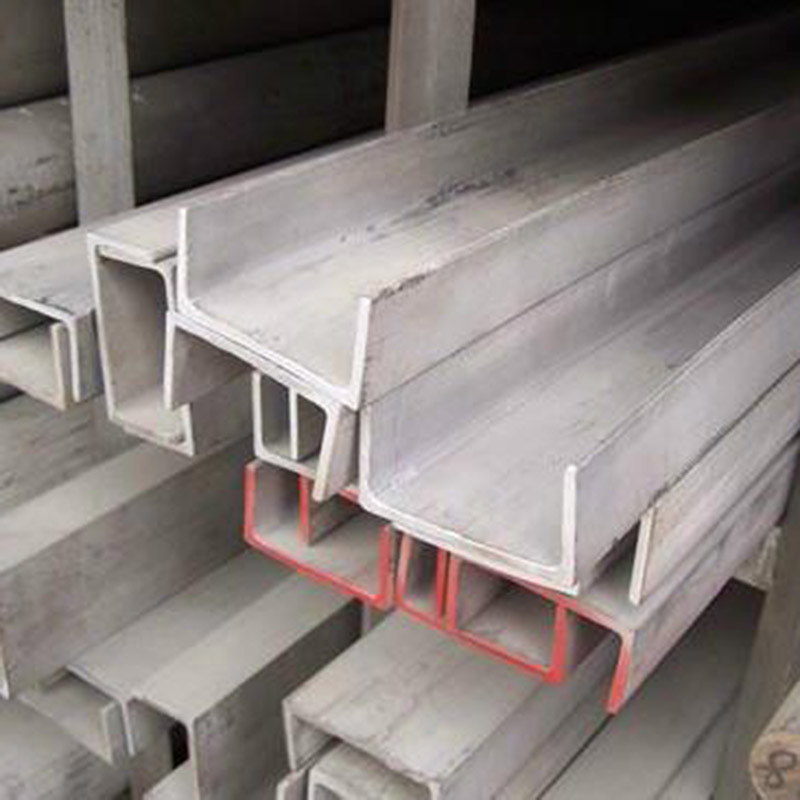

    Product Display:


    cold drawn AISI ASTM Stainless Steel Channel Bar 2mm For Steel Structure Buildingcold drawn AISI ASTM Stainless Steel Channel Bar 2mm For Steel Structure Building

    WHY CHOOSE US:


    Q1: What is your terms of payment?
    A: 30% T/T in advance, the balance 70% before delivery. We will show you the photos of products and package before you pay the balance.

    Q2: what is the terms of delivery?
    A: FOB, CIF, CFR,

    Q3: What is the terms of packing?
    A: generally, we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers' requirement.

    Q4: What is your delivery time?
    A: For stocks, we could transport the goods to loading port within 7 days after we received your deposit.
    For production period, it usually takes about 15 days-30 days after receiving the deposit.

    Q5: Could you produce according to the samples?
    A : Yes, we could customer-made by your samples or technique drawings, we could build the mold and fixtures.

    Q6: Could you provide the samples?
    A: yes, we could provide the free samples on conditons it is available in stocks, however, the the transportation fee is borne by buyer.
