SS 304L Sheet 202 SUS ASTM AISI 304 2B BA Stainless Steel Strip
Coil
Strip steel or cold rolled strip is a steel product that is
produced from a hot rolled strip that has been pickled. The coil is
then reduced by a single stand cold roll steel mill straight away
or reversing mill or in a tandem mill consisting of several single
stands in a series.
Product information:
| Commodity | SS 304L Sheet 202 SUS ASTM AISI 304 2B BA Stainless Steel Strip
Coil |
| Grade | 202 304 304L |
| Brand | TISCO ,BAOSTEEL,POSCO,JISCO,LISCO |
| Certification | SGS,BV,IQI,TUV,ISO,etc |
| Thickness | 0.1-3mm |
| Width | 10-600mm |
| Length | as per customers'requirements |
| Surface | 2B BA Finish |
| Standard | JIS,AISI,ASTM,GB,DIN |
| Delivery time | About 15days or based on the sales contract |
| MOQ | 1 Ton |
| Advantages | Showing the splendor of your quality, wearresistant as well , strong corrosion resistance and decorative effect, durable and
beautiful in good taste. |
Chemical Position:
| Grade | C | Si | Mn | P | S | Ni | Cr | Mo |
| 201 | ≤0.15 | ≤1.00 | 5.5～7.5 | ≤0.060 | ≤0.03 | 3.5～5.5 | 16.00～18.00 | - |
| 202 | ≤0.15 | ≤1.00 | 7.5～10.0 | ≤0.060 | ≤0.03 | 4.0～6.0 | 17.00～19.00 | - |
| 301 | ≤0.15 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 6.00～8.00 | 16.00～18.00 | - |
| 302 | ≤0.15 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 8.00～10.00 | 17.00～19.00 | - |
| 304 | ≤0.07 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 8.00～10.00 | 18.00～20.00 | - |
| 304L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 9.00～13.00 | 18.00～20.00 | - |
| 310S | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 19.00～22.00 | 24.00～26.00 | - |
| 316 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 10.00～14.00 | 16.00～18.00 | 2.00～3.00 |
| 316L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 12.00～15.00 | 16.00～18.00 | 2.00～3.00 |
| 321 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 9.00～13.00 | 17.00～19.00 | - |
| 410 | ≤0.15 | ≤1.00 | ≤1.00 | ≤0.040 | ≤0.03 | | 11.500～13.50 | - |
| 430 | ≤0.12 | ≤1.00 | ≤1.00 | ≤0.040 | ≤0.03 | | 16.00～18.00 | - |
Physical Property:
| Grade | Tensile Strength(Mpa) | Yield Strength(Mpa) | Elongation(%) | HBW | HRB | HV |
| 304L | ≥480 | ≥175 | ≥40 | ≤187 | ≤90 | ≤200 |
| 304 | ≥520 | ≥205 | ≥40 | ≤187 | ≤90 | ≤200 |
| 304J1 | ≥450 | ≥155 | ≥40 | ≤187 | ≤90 | ≤200 |
| 304N1 | ≥550 | ≥275 | ≥35 | ≤217 | ≤95 | ≤200 |
| 304N2 | ≥690 | ≥345 | ≥35 | ≤248 | ≤100 | ≤260 |
| 316 | ≥520 | ≥205 | ≥40 | ≤187 | ≤90 | ≤200 |
| 316L | ≥480 | ≥175 | ≥40 | ≤187 | ≤90 | ≤200 |
| 321 | ≥520 | ≥205 | ≥40 | ≤187 | ≤90 | ≤200 |
| 409L | ≥360 | ≥175 | ≥25 | ≤162 | ≤80 | ≤175 |
| 410L | ≥360 | ≥195 | ≥22 | ≤183 | ≤88 | ≤200 |
| 430 | ≥450 | ≥205 | ≥22 | ≤183 | ≤88 | ≤200 |
| 430J1L | ≥390 | ≥205 | ≥22 | ≤192 | ≤90 | ≤200 |
| 436L | ≥410 | ≥245 | ≥20 | ≤217 | ≤96 | ≤230 |
| 410 | ≥440 | ≥205 | ≥20 | ≤201 | ≤93 | ≤210 |
| 201 | ≥520 | ≥275 | ≥55 | ≤241 | ≤100 | ≤253 |
| 202 | ≥520 | ≥275 | ≥55 | ≤207 | ≤95 | ≤218 |
| 420 | ≥635 | ≥440 | ≥20 | ≤223 | | |
Brand Cross Reference Table:
| GB NEW BRAND | JIS | ASTM | UNS | KS | BS EN | AS |
| 12Cr17Mn6Ni5N | SUS201 | 201 | S20100 | STS201 | 1.4372 | 201-2 |
| 12Cr18Mn9Ni5N | SUS202 | 202 | S20200 | STS202 | 1.4373 | - |
| 12Cr17Ni7 | SUS301 | 301 | S30100 | STS301 | 1.4319 | 301 |
| 06Cr19Ni10 | SUS304 | 304 | S30400 | STS304 | 1.4301 | 304 |
| 022Cr19Ni10 | SUS304L | 304L | S30403 | STS304L | 1.4306 | 304L |
| 06Cr19Ni10N | SUS304N1 | 304N | S30451 | STS304N1 | 1.4315 | 304N1 |
| 06Cr19Ni9NbN | SUS304N2 | XM21 | S30452 | STS304N2 | - | 304N2 |
| 022Cr19Ni10N | SUS304LN | 304LN | S30453 | STS304LN | - | 304LN |
| 10Cr18Ni12 | SUS305 | 305 | S30500 | STS305 | 1.4303 | 305 |
| 06Cr23Ni13 | SUS309S | 309S | S30908 | STS309S | 1.4833 | 309S |
| 06Cr25Ni20 | SUS310S | 310S | S31008 | STS310S | 1.4845 | 310S |
| 06Cr17Ni12Mo2 | SUS316 | 316 | S31600 | STS316 | 1.4401 | 316 |
| 06Cr17Ni12Mo2Ti | SUS316Ti | 316Ti | S31635 | - | 1.4571 | 316Ti |
| 022Cr17Ni12Mo2 | SUS316L | 316L | S31603 | STS316L | 1.4404 | 316L |
| 06Cr17Ni12Mo2N | SUS316N | 316N | S31651 | STS316N | - | 316N |
| 022Cr17Ni13Mo2N | SUS316LN | 316LN | S31653 | STS316LN | 1.4429 | 316LN |
| 06Cr18Ni12Mo2Cu2 | SUS316J1 | - | - | STS316J1 | - | 316J1 |
| 022Cr18Ni14Mo2Cu2 | SUS316J1L | - | - | STS316J1L | - | - |
| 06Cr19Ni13Mo3 | SUS317 | 317 | S31700 | STS317 | - | 317 |
| 022Cr19Ni13Mo3 | SUS317L | 317L | S31703 | STS317L | 1.4438 | 317L |
| 06Cr18Ni11Tji | SUS321 | 321 | S32100 | STS321 | 1.4541 | 321 |
| 06Cr18Ni11Nb | SUS347 | 347 | S34700 | STS347 | 1.455 | 347 |
| 12Cr13 | SUS410 | 410 | S41000 | STS410 | 1.4006 | 410 |
| 20Cr13 | SUS420J1 | 420 | S42000 | STS420J1 | 1.4021 | 420 |
| 10Cr17 | SUS430 | 430 | S43000 | STS430 | 1.4016 | 430 |
Gauge Table:
| Gauge | SS inch | SS mm | Mild Steel | Galvanized Steel |
| | | | |
| 3 | 0.25 | 6.35 | 0.2391 | |
| 4 | 0.2344 | 5.95376 | 0.2242 | |
| 5 | 0.2187 | 5.55498 | 0.2092 | |
| 6 | 0.2031 | 5.15874 | 0.1943 | |
| 7 | 0.1875 | 4.7625 | 0.1793 | |
| 8 | 0.165 | 4.191 | 0.1644 | 0.168 |
| 9 | 0.1562 | 3.96748 | 0.1495 | 0.1532 |
| 10 | 0.1406 | 3.57124 | 0.1345 | 0.1382 |
| 11 | 0.125 | 3.175 | 0.1196 | 0.1233 |
| 12 | 0.1094 | 2.77876 | 0.1046 | 0.1084 |
| 13 | 0.0937 | 2.37998 | 0.0897 | 0.0934 |
| 14 | 0.0781 | 1.98374 | 0.0747 | 0.0785 |
| 15 | 0.0703 | 1.78562 | 0.0673 | 0.071 |
| 16 | 0.0625 | 1.5875 | 0.0598 | 0.0635 |
| 17 | 0.0562 | 1.42748 | 0.0538 | 0.0575 |
| 18 | 0.05 | 1.27 | 0.0478 | 0.0516 |
| 19 | 0.0437 | 1.10998 | 0.0418 | 0.0456 |
| 20 | 0.0375 | 0.9525 | 0.0359 | 0.0396 |
| 21 | 0.0344 | 0.87376 | 0.0329 | 0.0366 |
| 22 | 0.0312 | 0.79248 | 0.0299 | 0.0336 |
| 23 | 0.0281 | 0.71374 | 0.0269 | 0.0306 |
Surface Finish:
| Surface Finish | Definition | Application |
| 2B | Finished by heat treatment, pickling after cold rolling. Followed
by skin pass line to be more brighter and smooth surface | General application Medical instruments, Tableware |
| BA | Bright heat treament after cold rolling | Kitchen utensil, kitchenware, architectural |
| 8K | A mirror-like reflective surface by polishing with finer abrasives
over 800mesh | Construction, mirrors, plate sets, decoration elevators |
| HL | Finished by continuous linear polishing | Architectural purpose, Escalators, kitchenware, vehicles |
| NO.1 | Finished by hot rolling, annealing and picking, characterized by
white pickled surface | Chemical industry Equipment, industrail tanks |
| NO.4 | Polishing with NO.150 to NO.180 mesh abrasives specified in
JISR6001 | Kitchen utensils, Building Construction, Medical equipment |
Packing:
SS 304L Sheet 202 SUS ASTM AISI 304 2B BA Stainless Steel Strip
Coil packaging details :
1: Coils covered with waterproof protective packing materails ;
2: Then loaded in strong metal pallets +angle bar protection +steel
strip ;
3: Well loaded and be transported to the loading port .
The innner size container as below :
1: 20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high) about
24-26CBM ;
2: 40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM
;
3: 40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBM.
Stainless Steel Coil VS Stainless Steel Strip:
Strip steel is used for a variety of industrial
applications.Typically strip steel is used in body panels and
automotive components, tubes, appliances such as
refrigerators,washers and dryers, building materials as well as
electrical components.
There are no difference between coils and strips but the width.
Application:
You'll find strip steel used in appliances like refrigerators,
washers, and dryers. The unique properties of strip steel have also
made it a popular material for building and construction materials

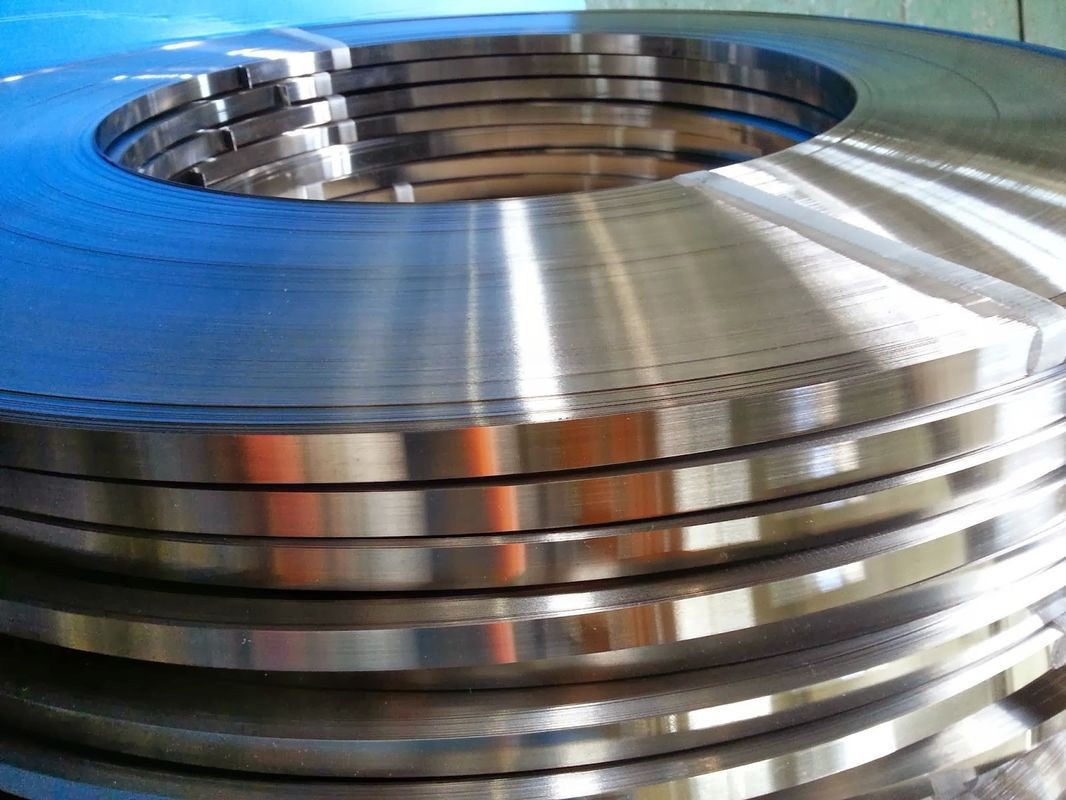

Product Display:
WHY CHOOSE US:
Q1: What is your terms of payment?
A: 30% T/T in advance, the balance 70% before delivery. We will
show you the photos of products and package before you pay the
balance.
Q2: what is the terms of delivery?
A: FOB, CIF, CFR,
Q3: What is the terms of packing?
A: generally, we pack our goods in bundles or coils with rods or
belts, we could also pack the goods as the customers' requirement.
Q4: What is your delivery time?
A: For stocks, we could transport the goods to loading port within
7 days after we received your deposit.
For production period, it usually takes about 15 days-30 days after
receiving the deposit.
Q5: Could you produce according to the samples?
A : Yes, we could customer-made by your samples or technique
drawings, we could build the mold and fixtures.
Q6: Could you provide the samples?
A: yes, we could provide the free samples on conditons it is
available in stocks, however, the the transportation fee is borne
by buyer.
